20454 / FFC cable

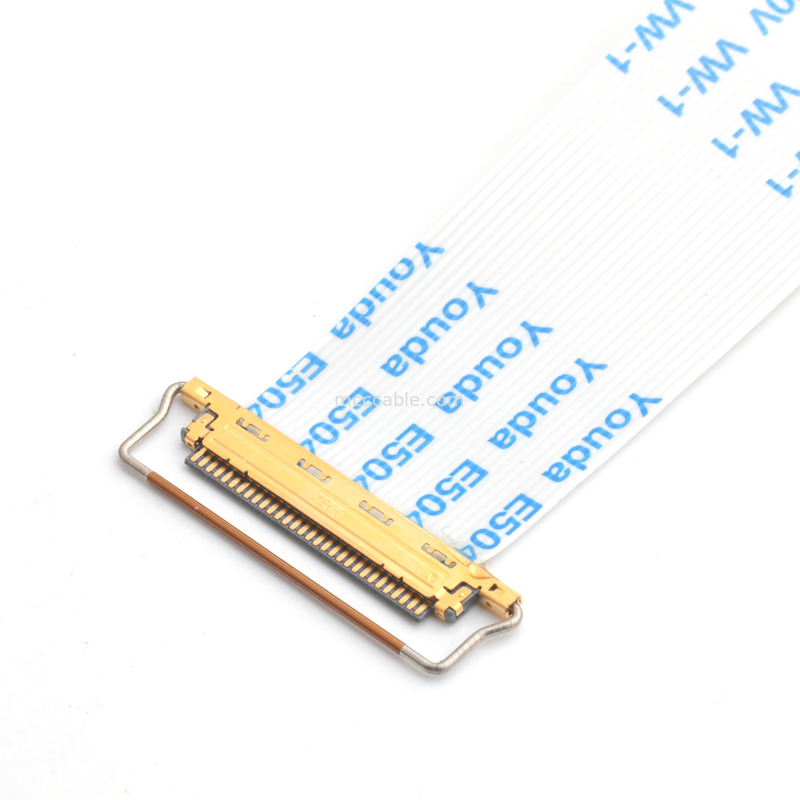

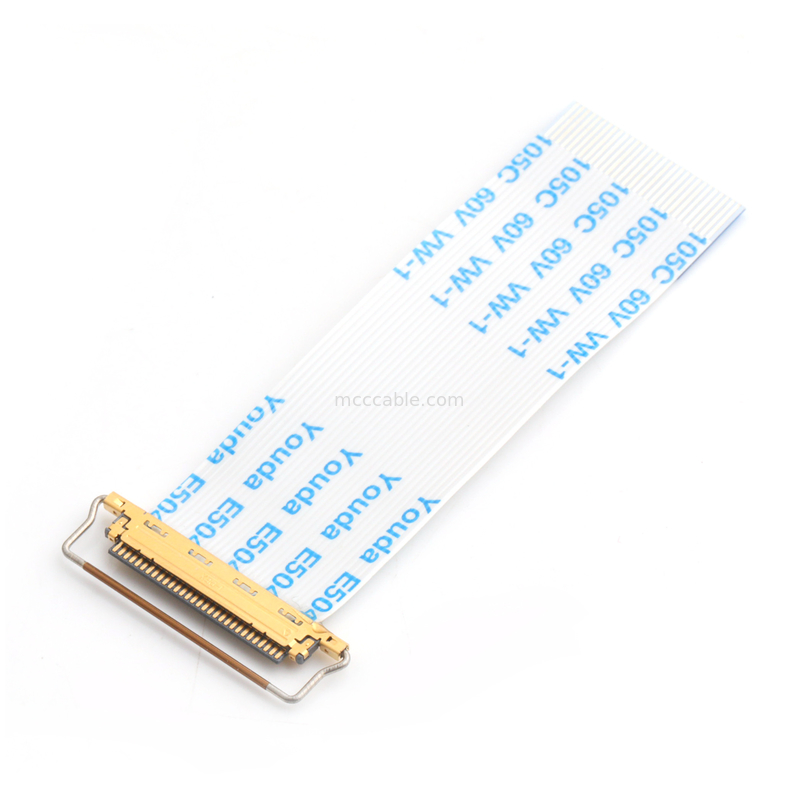

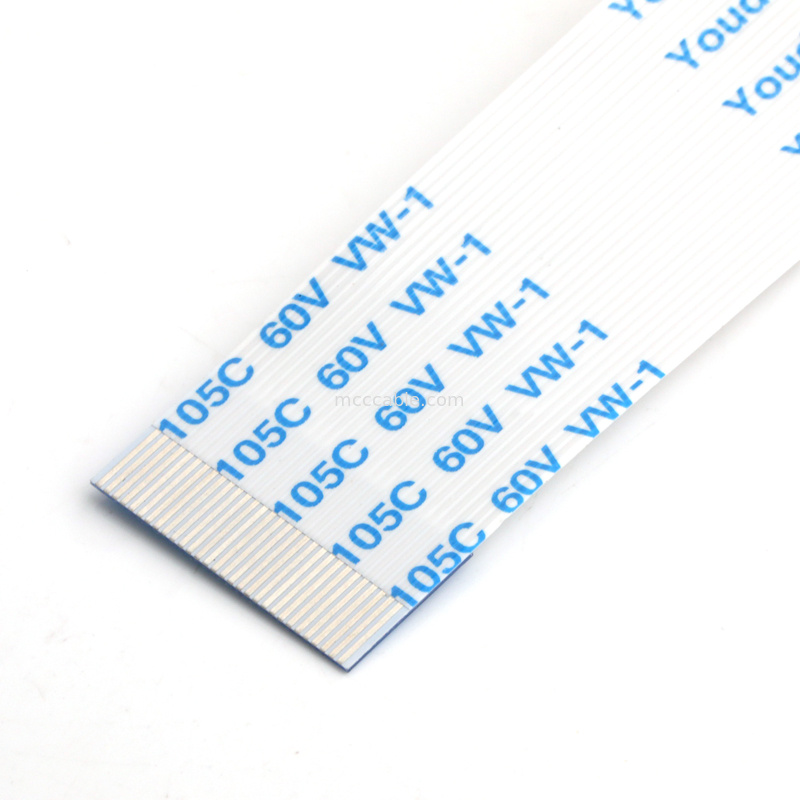

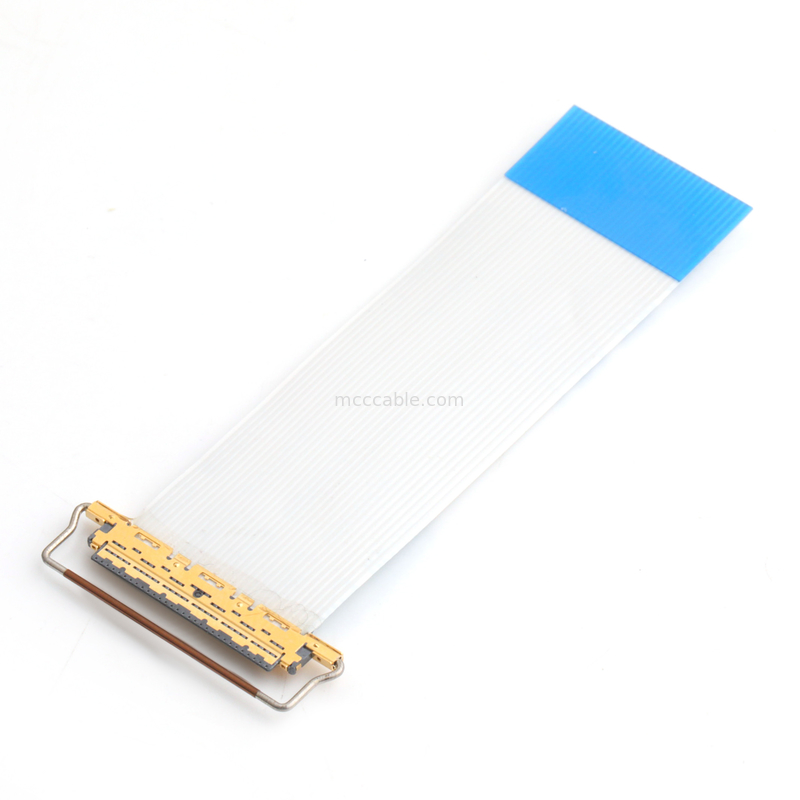

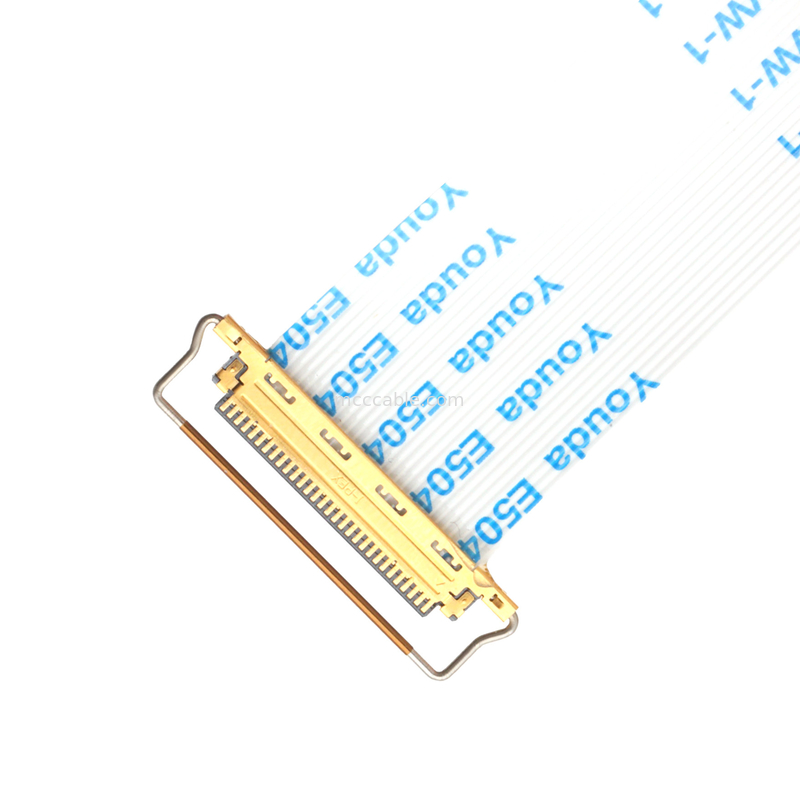

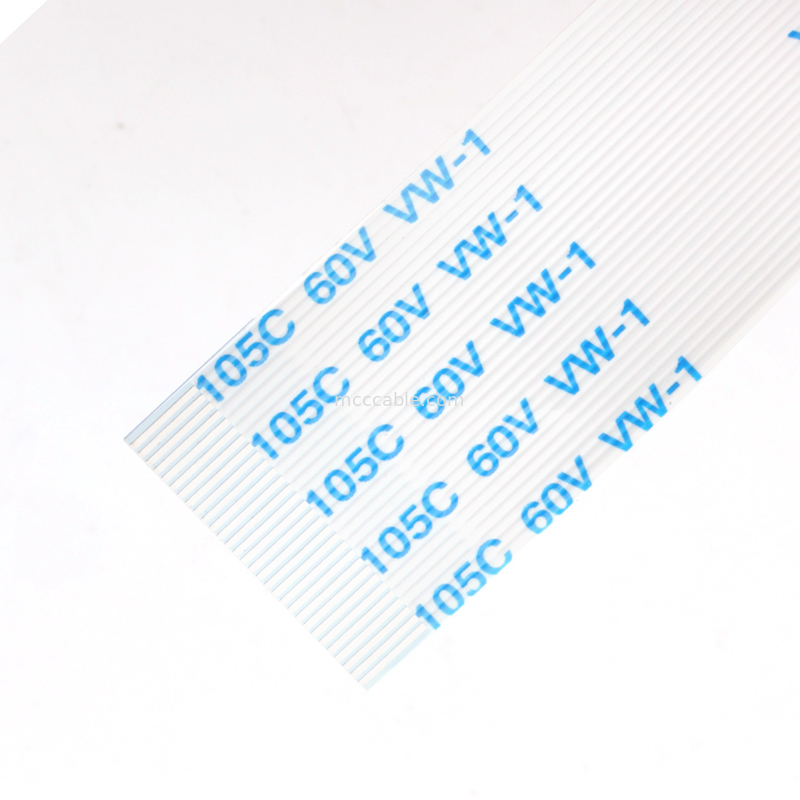

FFC FCP 20454-40P to Flexible flat cable 40P 0.5mm pitch
20454-40P cable Specification:
| Contact pitch | 0.500 mm |
| Height | 1.10 Max (1.00 Nom.) |
| Depth | 5.80 mm |
| Width Formula | 7.55+(0.5*?p) mm |
| Pin count | 20 30 40 50 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 Gen3/Thunderbolt 4 (20Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Automotive Standards | LV214 (50P tested. PG17 Dynamic Loading evaluation passed) |
20454 40P to FFC FPC Extremely small space solution:
1. Customization and Design: We offer highly customizable FFC/FPC cables, tailored to meet your exact specifications. Whether you need different sizes, number of conductors, or specific bending characteristics, we can create cables that suit your design requirements.
2. High-Density Applications: FFC/FPC cables are ideal for applications where space is limited. They can be used in compact devices like smartphones, wearables, laptops, automotive systems, and medical devices. We design solutions that maximize the use of available space without compromising on performance.
3. Flexible and Durable: Our FFC/FPC cables are designed to be flexible, ensuring they can be used in dynamic, high-mobility environments. They are suitable for systems that require frequent bending and movement without risking failure, such as robotic arms, flexible displays, or folding electronics.
4. Signal Integrity and Performance: The cables are engineered to ensure high signal integrity and minimal interference. Whether you're working with high-speed data or analog signals, our solutions help maintain reliable connections even in complex, noise-prone environments.
5. Interconnectivity with Advanced Electronics: FPC cables are commonly used to connect various electronic components, especially in high-performance, small-form-factor devices. They provide an efficient way to link complex systems such as displays, sensors, processors, and connectors.
FFC Flat Cable Application:
1. FFC wiring harness for Displayer
2. FFC wiring harness for Car DVD
3. FFC wiring harness for Airbag line
4. FFC wiring harness for Sound;Box
5.FFC wiring harness for Inkjet printer
6. FFC wiring harness for Flat screen;TV
7. FFC wiring harness for Digital camera
8.FFC wiring harness for Pictorial machine
9. FFC wiring harness for liquid crystal display
10. FFC wiring harness for Printer;Scanner;FAX machine;Copier.
