BODY/JST connector
lvds cable Connector Customized Combination Cable OEM/ODM

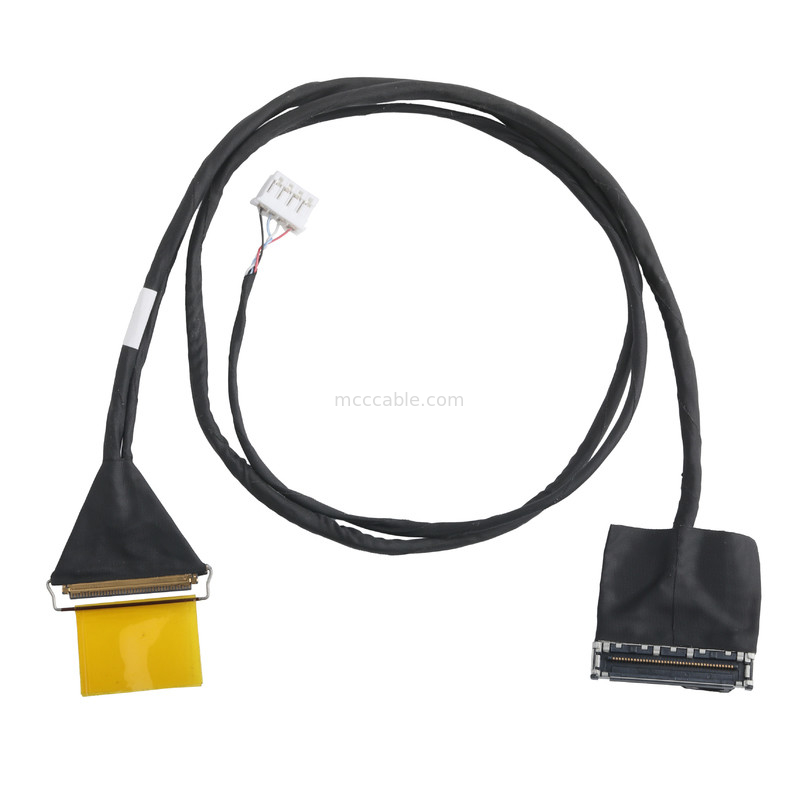

20453-40P to BODY 0520-SD40-B and JST PHR-4 cable:
| Mating Direction | Horizontal |
| Contact pitch | 0.50 mm |
| Height | 1.10 Max (1.00 Nom.) , |
| Depth | 5.80 mm |
| Width Formula | 7.55+(0.5*?p) mm |
| Pin count | 20 30 40 50 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 Gen3/Thunderbolt 4 (20Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
The micro coaxial cables we can produce include , LVDS cable, SGC cable, MCC cable, micro coaxial
cable assembly, LVDS eDP transmission,HRS cable, cable, Hirose Micro Shaft cable, KEL micro coaxial cable,
ACES micro coaxial cable, etc. LVDS cable,LCD cable,eDP cable, LVDS cable,LCD Ribbon cable
20380 Common used connector part number:20453-220T-03 20453-230T-03 20453-240T-03 20453-020T-03S
Application
VR HEADSET/Dual Display (LCoS, RPDs)
AR/Liquid Crystal Display
Laptop/Camera
Laptop/LCD Connection
DRONE MAIN BODY/Gimbal Motor Connection-Camera
Automotive/Cluster Display
