Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
LVX-A30LMSG+

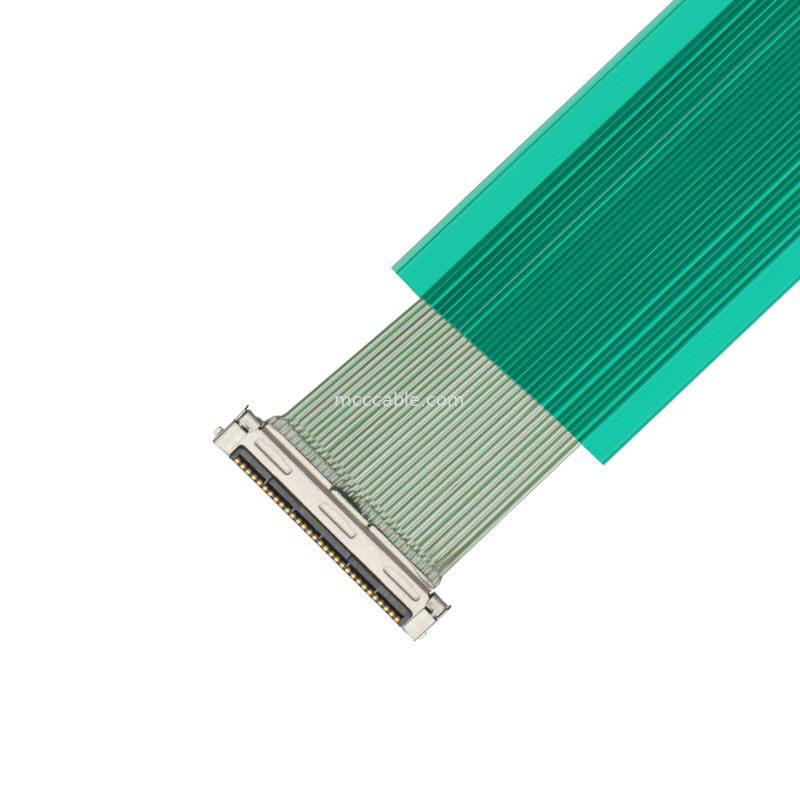

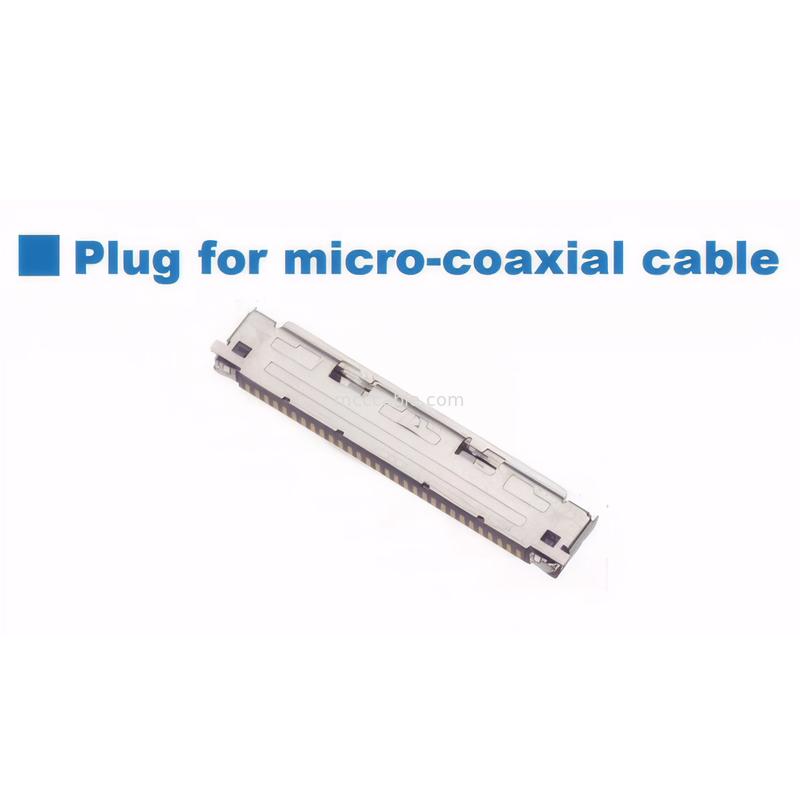

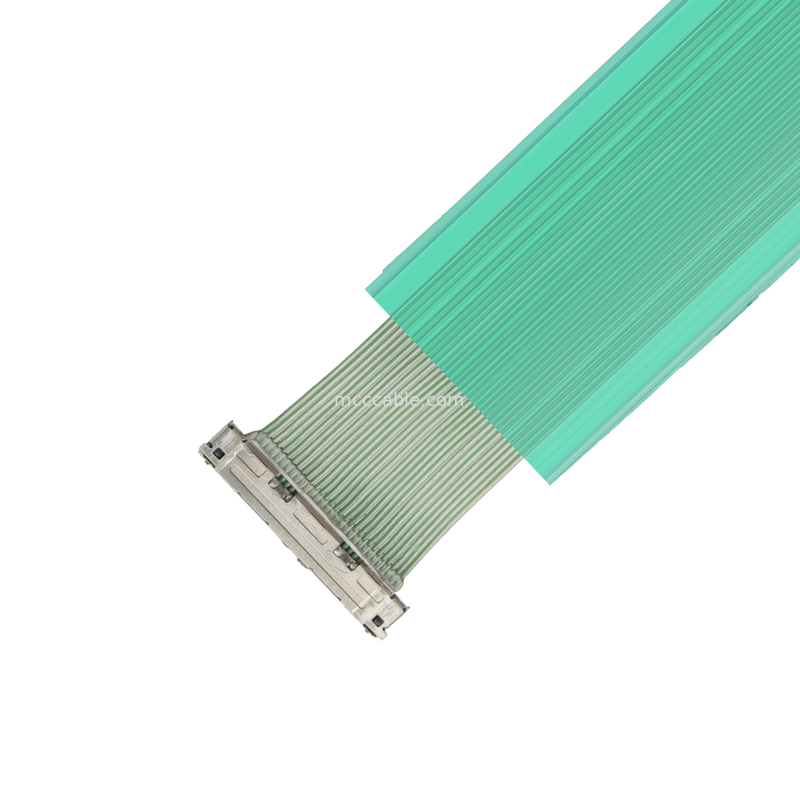

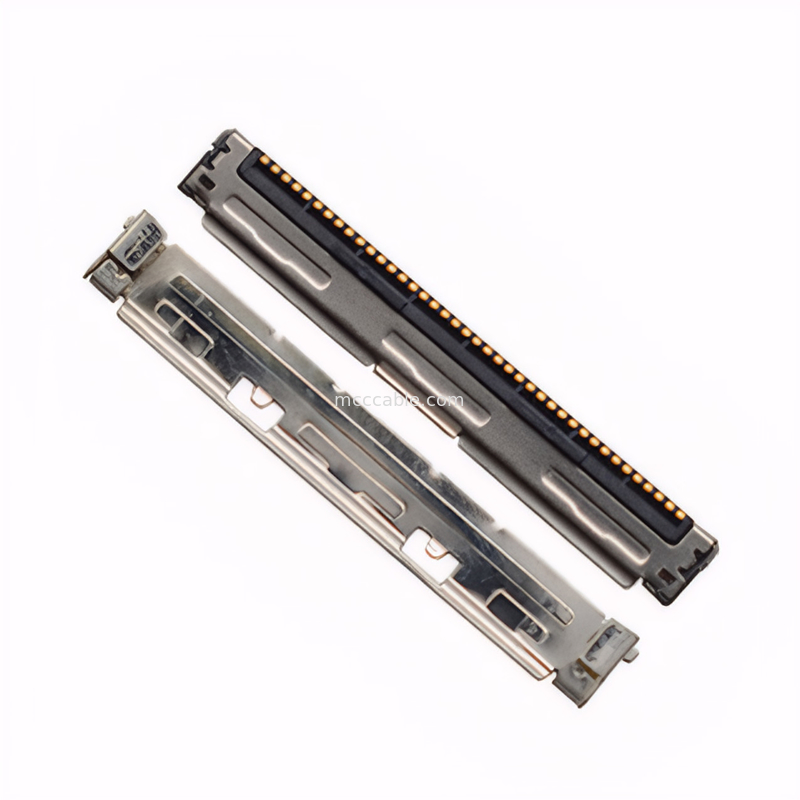

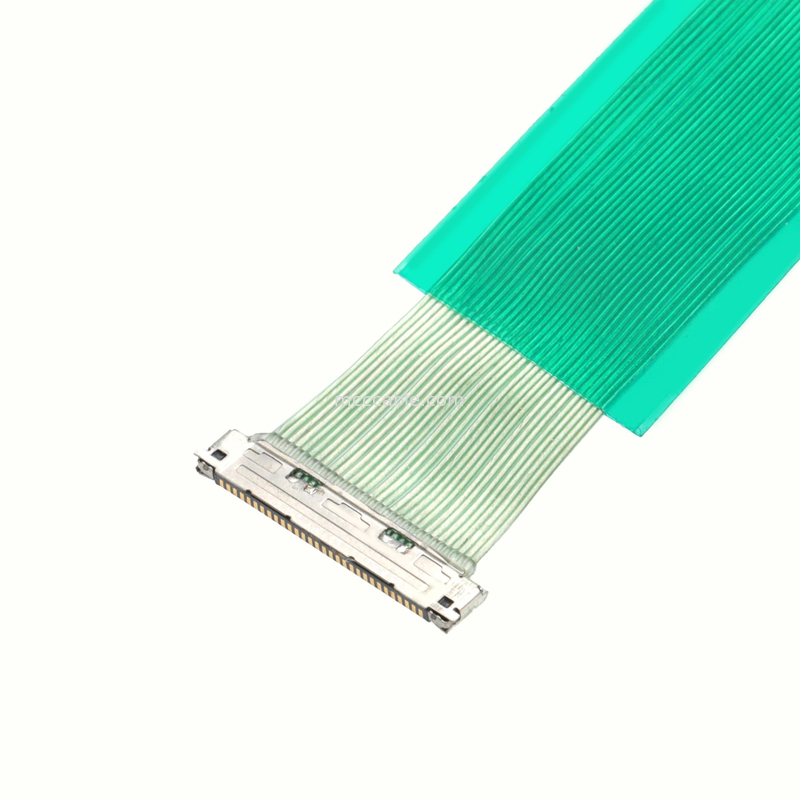

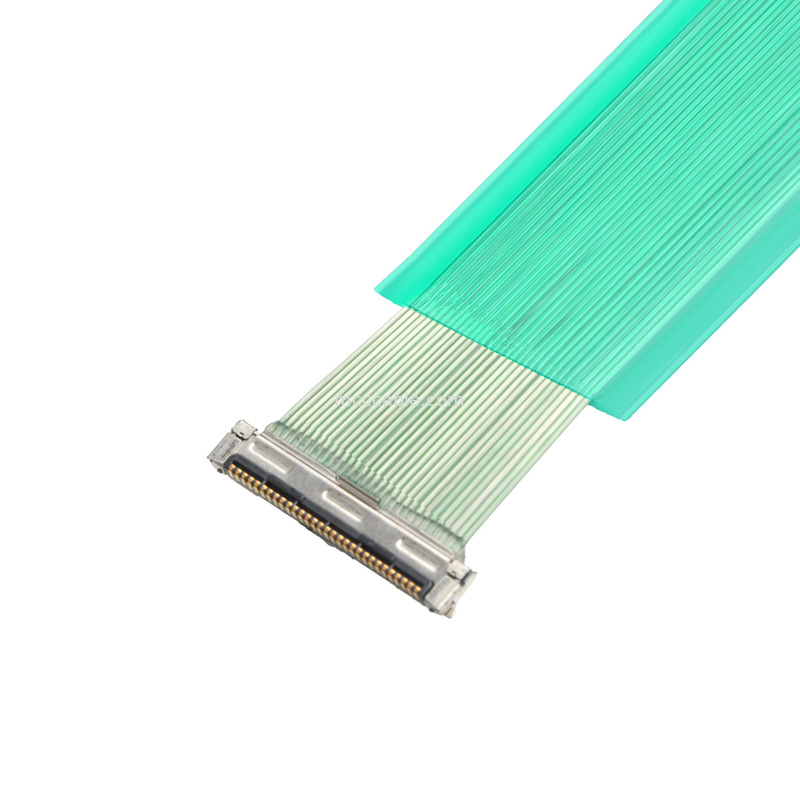

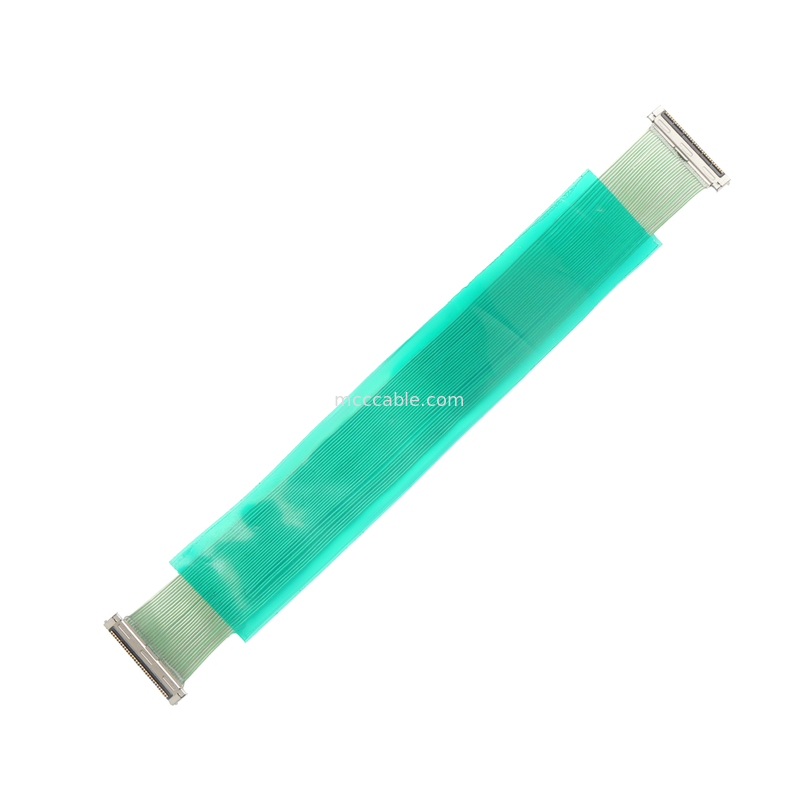

LVX series connectors LVX-A30LMSG+ multi micro-coaxial cable
0.4 mm pitch 1.2 mm mated height
LVX-A30LMSG+ wiring harness parameters:
| Specification | Details |
|---|---|
| Rated Voltage | 100 V AC (r.m.s) |
| Rated Current | 0.2 A per contact |
| Insulation Resistance | ≥ 100 MΩ at 250 V DC |
| Dielectric Withstanding Voltage | 250 V AC (r.m.s) for one minute |
| Operating Temperature Range | -20°C to +70°C |
| Part Name | Material and Finish |
|---|---|
| Insulator | LCP resin (GF), UL 94V-0 (Color: Black) |
| Contact | Copper alloy, Gold over nickel plated |
| Plug Shielded Shell | Stainless steel, selective tin plated |
| Receptacle Shielded Shell | Stainless steel, tin plated |
What can we do?
We specialize in high-quality cable assemblies, including micro coaxial, eDP, LVDS, MIPI, fine pitch coaxial, and display cables. Our offerings include custom solutions for LCD panel cables, HD camera micro-coax assemblies, and various connector types such as Hirose, JAE, Molex, KEL, and JST. We also provide tailored OEM/ODM services, ensuring precision and reliability in every product. Whether you're looking for custom LVDS assemblies, fine pitch micro coaxial cables, or tooling for cable connectors, we deliver specialized, made-to-order solutions to meet your unique needs.
How can we help you with customization?
we understand that every industry has unique requirements when it comes to cable solutions. Whether it's for precision in aviation systems, stringent performance in medical devices, or robust reliability in defense applications, our expert team is here to create cables that meet your specific demands. With a focus on quality, durability, and innovation, we leverage cutting-edge technologies and industry expertise to deliver cables that not only support your projects but also exceed your expectations. No matter the complexity or scale, we are committed to providing scalable, efficient, and cost-effective cable assemblies for your business.
Q1. Is it a factory?
A:Yes,we have more than 17 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
